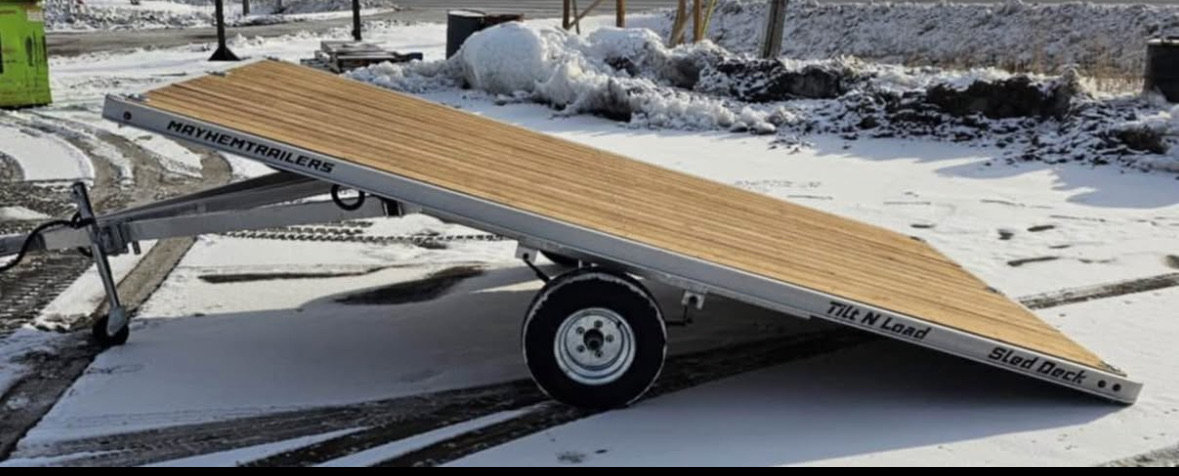

SNOWMOBILE HAULER SERIES

  • Box Size: 50" x 10'

  • Axle/Axles: 3500lb. (1590kg.)

  • Brakes: None

  • GVWR: 950kg. (2100lb.)

  • Tires: 5.30 x 12, LRC

  • Rims: White spoke, 5 bolt

  • Coupler: 2"

  • Jack: Optional

  • Floor: 5/8" PT plywood/steel

  • Frame: Galvanized/full steel tube

  • Hold Downs: Ski Retainer Bars

  • Loading: Tilt & load

  • Curb Weight: 250kg

  • Box Size: 100" x 10'/100" x 12'

  • Axle/Axles: 3500lb. (1590kg.)

  • Brakes: None

  • Coupler: 2"

  • GVWR: 950kg. (2100lb.)

  • Tires: 5.30 x 12, LRC

  • Rims: White spoke, 5 bolt

  • Jack: Optional

  • Floor: 5/8" PT plywood/steel

  • Frame: Galvanized/full steel tube

  • Hold Downs: Ski Retainer Bars

  • Loading: Tilt & load

  • Curb Weight: 330kg./350kg.

  • Box Size: 100" x 10'/100" x 12'

  • Axle/Axles: 3500lb. (1590kg.)

  • Brakes: None

  • Coupler: 2"

  • GVWR: 950kg. (2100lb.)

  • Tires: 5.30 x 12, LRC

  • Rims: White spoke, 5 bolt

  • Jack: Optional

  • Floor: 5/8" PT plywood/steel

  • Frame: Galvanized/full steel tube

  • Hold Downs: Ski Retainer Bars

  • Loading: Tilt & load

  • Curb Weight: 330kg./350kg.

  • Bed size: 100" X 19" (4 sled)

  • Axle: tandem 3500lb

  • Brakes: electric on one axle

  • G.V.W.R.: 2380kg

  • Tires: 13" LRC

  • Coupler: 2" A-frame

  • Jack: 2000lb  A-frame

  • Floor: 5/8" PT plywood & galvanized

  • Frame: full steel tube painted

  • Hold downs: ski retainer bars

  • Loading: 4' X 4' steel mesh ramp

  • Curb weight: 780kg
